ramps 1.4 issue with 3 extruder motors

so after a long few days repetier figured out one of my issues was the the 3rd  extrudes not being identified in pins H Yeah \

my other issue was a USB comm issue used com3 before i had to plug into a different USB plug changed it to COm4 now the program uploads.

Went in and added 2 lines to pins and reverse the thermos pins see below

#define ORIG_E0_STEP_PIN         26
#define ORIG_E0_DIR_PIN          28
#define ORIG_E0_ENABLE_PIN       24

#define ORIG_E1_STEP_PIN         36
#define ORIG_E1_DIR_PIN          34
#define ORIG_E1_ENABLE_PIN       30

added this
#define ORIG_E2_STEP_PIN         42
#define ORIG_E2_DIR_PIN          40
#define ORIG_E2_ENABLE_PIN       63

shows aux2 pins as 5v gnd a9/d63 40 42 I used those 3 for my extension board v1.1
top header E S D G thats the ID for the above Pins

#define TEMP_0_PIN         14   Swapped as my zero is burned out on this board
#define TEMP_1_PIN         13 T0 is plugged in here
#define TEMP_2_PIN         15
#define E0_PINS ORIG_E0_STEP_PIN,ORIG_E0_DIR_PIN,ORIG_E0_ENABLE_PIN,
#define E1_PINS ORIG_E1_STEP_PIN,ORIG_E1_DIR_PIN,ORIG_E1_ENABLE_PIN,
#define E2_PINS ORIG_E2_STEP_PIN,ORIG_E2_DIR_PIN,ORIG_E2_ENABLE_PIN, Added this is the 2nd line

so it compiles and uploads
Problem is when i run my print all 3 extruders push filament at the same time?
is pin 63 really pin 15 i read some place and is d63 wrong pin also A9
what should the ID for d63 be?
or what is causing all 3 to push when E2 is selected?

these are all on AUX2 top 2 are gnd and 5v right side down are these 3 pins which is what i have been using until the Pins h got deleted or something.

think the new mega 2560 i jut got is bad
thanks in advance

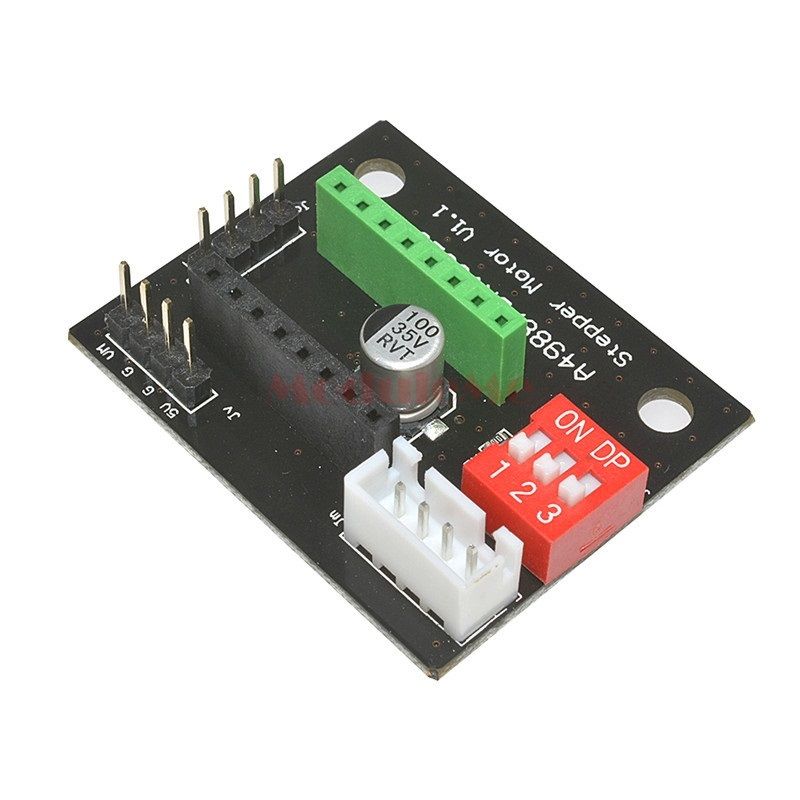

A4988 DRV8825 Stepper Motor Driver Control Panel Board Expansion Board Module V11 Active
